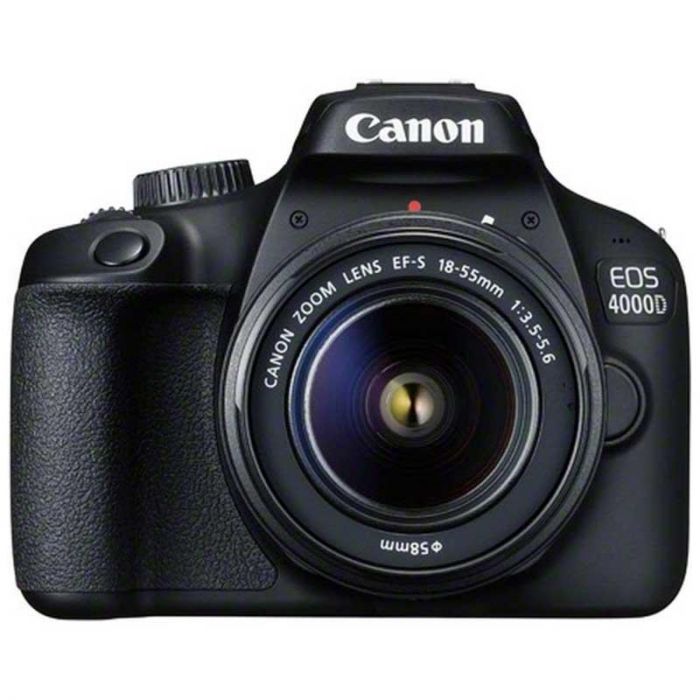

CANON DSLR EOS 4000D 18-55 DC - كاميرا رقمية

Image Sensor
Type
Approx. 22.3 mm x 14.9 mm

Effective Pixels
Approx. 18.0 megapixels

Total Pixels
Approx. 18.7 megapixels

Aspect Ratio
3:2

Low-Pass Filter
Built-in/Fixed

Sensor Cleaning
Manual cleaning and Dust Delete Data acquisition

Colour Filter Type
RGB Primary Colour

Image Processor
Type
DIGIC 4+

Lens
Lens Mount
EF/EF-S

Focal Length
Equivalent to 1.6x the focal length of the lens

Image Stabilisation
Optical Image Stabilizer provided on compatible lenses

Focusing
Type
Via optical viewfinder:


TTL secondary image-forming phase-difference detection system with AF-dedicated sensor


Via live view on LCD screen:


Contrast detection AF

AF System/ Points
Via optical viewfinder:


9 AF points (f/5.6 cross type at centre)

AF working range
Via optical viewfinder:


Centre AF point: EV 0 -18 (at room temperature & ISO100)
Other AF points: EV 1 -18 (at room temperature & ISO100)


Via live view LCD screen:


EV 1 -18 (at room temperature & ISO100)

AF Modes
Via optical viewfinder:


AI Focus (Switches between One-Shot AF and AI SERVO AF automatically)

One Shot AF
AI Servo
Manual


Via live view LCD screen:


One Shot AF (Contrast detect AF)
Quick Mode (via phase detection AF sensor)
Manual

AF Point Selection
Via optical viewfinder:


Automatic selection from up to 9 points
Manual selection


Via live view on LCD screen:


FlexiZone - Freely position 1 AF point via manual selection
Live Mode - Automatic selection with face detection

Selected AF point display
Indicated by superimposed display in the viewfinder and on the LCD monitor

Predictive AF
Yes

AF Lock
Locked when shutter button is pressed half way in One Shot AF mode. Customisation available via AE Lock Button

AF Assist Beam
Intermittent firing of built-in flash or emitted by optional dedicated Speedlite (effective up to 4.0 m)

Manual Focus
Selected on lens

Exposure Control
Metering modes
Via optical viewfinder:


Evaluative via 63 zone dual-layer metering sensor (linked to all AF points)
Partial (centre, approx. 10% of viewfinder)
Centre-weighted average available


Via live view on LCD screen:


Evaluative metering (315 zones)

Metering Range
Via optical viewfinder:


EV 1-20 (at room temperature, ISO 100, evaluative metering)


Via live view on LCD screen:


EV 0-20 (at room temperature, ISO 100, evaluative metering)

AE Lock
Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved.


Manual: By AE lock button in creative zone modes.

Exposure Compensation
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

AEB
3 shots +/- 2 EV, 1/2 or 1/3-stop increments

ISO Sensitivity
AUTO(100-6400), 100-6400 in 1-stop increments ISO can be expanded to H: 12800 1


During Movie shooting: Auto (100-6400), 100-6400 (Whole stop increments)

Shutter
Type
Electronically-controlled focal-plane shutter, with electronic first curtain

Speed
30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

White Balance
Type
Auto white balance with the imaging sensor

Settings
AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom (Approx. 2000 K - 10000 K).


White balance compensation:
Blue/Amber +/-9
Magenta/ Green +/-9.

Custom White Balance
Yes, 1 setting can be registered

WB Bracketing
+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/Green bias.

Viewfinder
Type
Pentamirror

Coverage (Vertical/Horizontal)
Approx. 95%

Magnification
Approx. 0.80x 2

Eyepoint
Approx. 21mm (from eyepiece lens center)

Dioptre Correction
Fixed at -1.0 m-1 (dpt)
- E-series Dioptric Adjustment Lenses can be used to make dioptric adjustments.

Focusing Screen
Fixed

Mirror
Quick-return half mirror

Depth of field preview
Yes, assigned to SET button

Eyepiece shutter
On strap

LCD Monitor
Type
6.8 cm (2.7") TFT LCD, approx. 230 K dots

Coverage
Approx. 100%

Viewing Angle (horizontally/vertically)
Approx. 120° vertically
Approx. 130° horizontally

Brightness Adjustment
Adjustable to one of seven levels

Display Options
Quick Control Screen
Camera settings

Flash
Built-in Flash GN (ISO 100, meters)
9.2

Built-in Flash Coverage
up to 17mm focal length (35mm equivalent: 28mm)

Built-in Flash recycle time
Approx. 2 seconds

Modes
Auto, Manual Flash On/off

X-sync
X-contact not equipped, Max. flash sync speed: 1/200 sec. with compatible Speedlites

Flash Exposure Compensation
+/- 2EV in 1/2 or 1/3 increments

Flash Exposure Lock
Yes

Second Curtain Synchronisation
Yes

HotShoe/ PC terminal
Yes/No

External Flash Compatibility
E-TTL II with EX series Speedlites 3

External Flash Control
Available via camera menu screen, except for wireless radio flash shooting settings

Shooting
Modes
Scene Intelligent Auto, Creative Auto, Portrait, Landscape, Close-up, Sports, Food, Night Portrait, Program AE , Shutter priority AE, Aperture priority AE, Manual, Movie Mode

Picture Styles
Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)

Colour Space
sRGB and Adobe RGB

Image Processing
Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Auto Correction of Lens Peripheral illumination (up to 20 lens profiles can be registered in camera)


Creative filters (Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye) - during image Playback only

Drive modes
Single, Continuous, Self timer (2s, 10s, 10s + continuous shots 2-10)

Continuous Shooting
Max. Approx. 3 fps in JPEG until memory card becomes full 4, 6 images RAW 5 6

Live View Mode
Coverage
Approx. 100% (horizontally and vertically)

Frame Rate
29.97 fps

Focusing
Live Mode: One Shot AF (Contrast detect AF)
Quick Mode: One Shot AF (phase detection AF sensor)
Manual (Magnification 5x or 10x available)

Metering
Real-time evaluative metering with image sensor
Active metering time can be changed

Display Options
Grid overlay (x2), Histogram

File Type
Still Image Type
JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0),
RAW: RAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant

RAW+JPEG simultaneous recording
Yes, RAW + Large JPEG

Image Size
JPEG 3:2: (L) 5184 x 3456, (M) 3456 x 2304, (S1) 2592 x 1728, (S2) 1920 x 1280, (S3) 720 x 480
JPEG 4:3: (L) 4608 x 3456, (M) 3072 x 2304, (S1) 2304 x 1728, (S2) 1696 x 1280, (S3) 640 x 480
JPEG 16:9: (L) 5184 x 2912, (M) 3456 x 1944, (S1) 2592 x 1456 (S2) 1920 x 1080, (S3) 720 x 400
JPEG 1:1: (L) 3456 x 3456, (M) 2304 x 2304, (S1) 1728 x 1728, (S2) 1280 x 1280, (S3) 480 x 480


RAW: (RAW) 5184 x 3456

Movie Type
MOV (Video: H.264 inter frame (IPB), Sound: Linear PCM, recording level can be manually adjusted by user)

Movie Size
1920 x 1080 (30, 25, 24 fps)
1280 x 720 (60, 50 fps)
640 x 480 (30, 25 fps)

Movie Length
Max duration 29 min 59 sec, Max file size 4 GB

Folders
New folders can be manually created and selected

File Numbering
Consecutive numbering
Auto reset
Manual reset

Other Features
Custom Functions
10 Custom Functions

Metadata Tag
User copyright information (can be set in camera)
Image rating (0-5 stars)

Intelligent Orientation Sensor
Yes

Playback zoom
1.5x - 10x enabled in 15 steps

Display Formats
(1) Single image with information (2 levels)
(2) Single image
(3) Index display (4/9 images)
(4) Jump Display (1/10/100 images, by Date, by Folder, Movies only, Stills only, by Rating)

Slide Show
Image selection: All images, by Date, by Folder, Movies, Stills, Rating
Playback time: 1/2/3/5/10 or 20 seconds
Repeat: On/Off
Transition Effect: Off, Slide 1, Slide 2, Fade 1, Fade 2, Fade 3
Background Music: On, Off

Histogram
Brightness: Yes
RGB: Yes

Highlight Alert
Yes

Image Erase/Protection
Erase: Single image, selected images, all images in folder or all images on card
Protection: Erase protection for single image, all images in a folder or all images in the card

Menu Categories
(1) Shooting menu (x4)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) My Menu

Menu Languages
25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

Firmware Update
Update possible by the user.

Interface
Computer
Hi-Speed USB only

wifi
Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only) 7


Connectivity to Smart devices is possible via Canon Camera Connect app 8

Wi-Fi Security
Camera Access Point: WPA2-PSK with AES encryption or open


Infrastructure: Shared key, with WEP encryption, WPA-PSK/WPA2-PSK with TKIP/AES encryption or open

Other
HDMI mini (Type-C) output

Direct Print
Canon Printers
Canon Compact Photo Printers and PIXMA Printers supporting PictBridge

PictBridge
Yes

Storage
Type
SD card, SDHC card or SDXC card

Supported Operating System
PC & Macintosh
Windows 10 / 8.1 / 7 SP1 9
Mac OS X 10.10 - 10.13

Software
Image Processing
Digital Photo Professional (RAW Image Processing)

Other
EOS Utility
EOS Lens Registration Tool
EOS Web Service Registration Tool
EOS Sample Music
Picture Style Editor


Camera Connect app available on iOS and Android devices 10

Power Source
Batteries
1 x Rechargeable Li-ion Battery LP-E10

Battery life
Approx. 500 (at 23°C, AE 50%, FE 50%) 11
Approx. 410 (at 0°C, AE 50%, FE 50%)

Battery Indicator
4 levels

Power saving
Power turns off after 30 sec or 1, 2, 4, 8 or 15 mins.

Power Supply & Battery Chargers
Battery charger LC-E10E

Weight and Dimensions
Body Materials
Polycarbonate resin with glass fibre

Operating Environment
0 – 40 °C, 85% or less humidity

Dimensions (H x W x D)
129.0 x 101.6 x 77.1 mm

Weight (body only)
Approx. 436 g (CIPA testing standard, including battery and memory card)

Accessories
Viewfinder
Eyecup Ef
Rubber Frame Ef
E-series Dioptric Adjustment Lenses
Eyepiece Extender EP-EX15II
Angle Finder C
Magnifier MG-Ef

Case
Semi Hard Case EH26-L, EH27-L
Protecting Cloth PC-E1, PC-E2
Shoulder Bag SB10, SB100
Backpack BP10, BP12, BP100
Messenger Bag MS10, MS11
Sling Bag SL100
Holster HL100

Lenses
All EF and EF-S lenses

Flash
Canon Speedlites (270EX II, 430EX III-RT, 600EX II-RT, Macro-Ring-Lite MR-14EX II, Macro Twin Lite MT-26EX-RT, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT) 12

Other
Hand Strap E2, HDMI Cable HTC-100, Interface Cable IFC400PCU
